技术参数

DT-K003

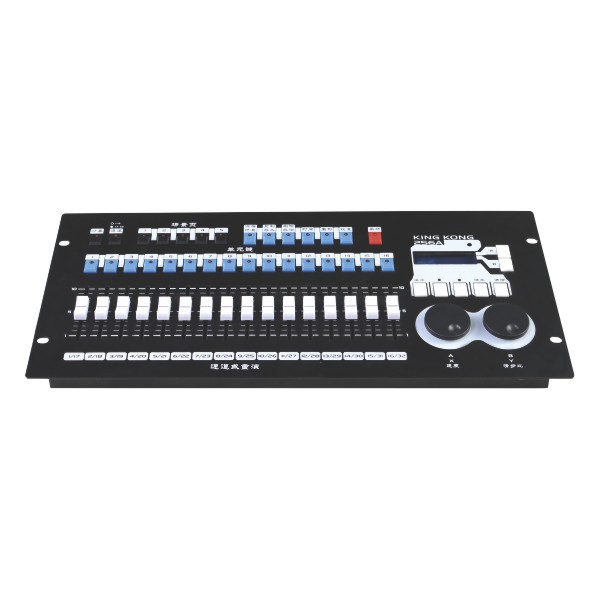

DMX 256 Controller

DMX512/1990 standard, maximum 256 DMX control channels, all optical isolation signal output.
Maximum control 16 scanners or 64 dimming.
Automatically generate light library
Backlit LCD display, the first Chinese and English display switchable interface. Panels are available in English and Chinese.
Built-in graphics trace generator, 35 built-in graphics, user-friendly for the computer lights to control the graphical trajectory, such as painting circle, spiral, rainbow, chase and other effects.
Graphic parameters (such as: amplitude, speed, interval, wave, direction) can be set independently, making it easier and faster to make the desired shape and scene.
80 replay scenes can be stored for storing multi-step scenes and single-step scenes. Each multi-step scene can store up to 600 single steps.
Simultaneous output and operation of 16 replay scenes.
With 16 centralized control putter. Keypoint control is compatible with fader set control.
Data such as power off or sudden power off can be memorized and maintained.
The U disk can backup the console data and support the re-import to the console. The controller data of the same model can be shared.
Supports remote software upgrades, adding new features anytime, anywhere.
The preset fader can control the properties of the computer light, and the property control is more convenient and quicker.
Supports immediate black court,
Product size: 480*220*75mm
Net weight: 3.7KG
Power supply: AC 100 -240V / 50-60Hz
