DT-8271

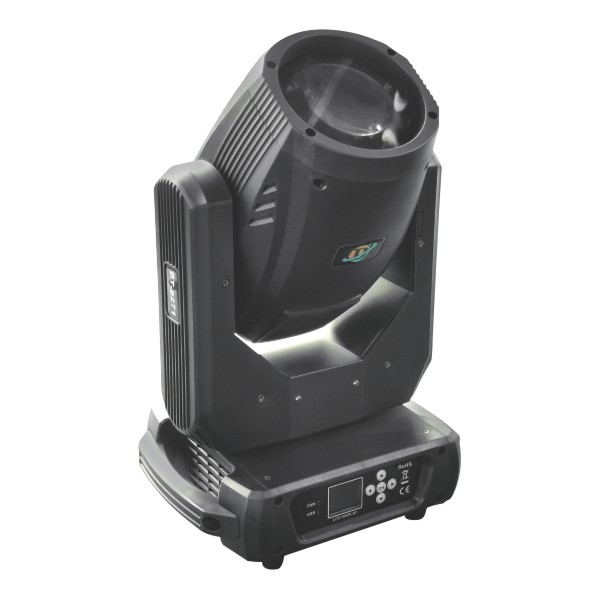

271W Moving Head Beam Light

Voltage:AC100-240V, 50/60Hz
Total power: 400W
Light source: 271W
The luminous flux is 7950lm, the color temperature can

reach 8500K
Control method: DMX512/WDMX/self-propelled
Channel: 16 channels
Color wheel: a color wheel, each color wheel is

composed of 14 color chips + white, the rotation speed

is adjustable, two-way water effect and rainbow effect.
Pattern plate: fixed pattern plate, 17 pattern effects +

white light + 3 glass patterns
Prisms: 56 honeycomb prisms, 16 prisms, double prisms

can be superimposed and can be rotated independently

in both directions, and the rotation speed is adjustable.
Focus: linear focus, from near to far.
With atomization function, the atomization speed is

adjustable.
0-100% mechanical dimming, support mechanical

stroboscopic and adjustable speed stroboscopic effects,

support stroboscopic macro function, mechanical

stroboscopic 1-12 F.P.S.
Lens group optical system, electric focus, beam angle 0

～4°
Horizontal 540°, 8Bit/16Bit fine-tuning Vertical 270°,

8Bit/16Bit fine-tuning
With horizontal and vertical fine automatic error

correction function.
Overheating protection
IP protection level: Ip20
Lamp body size: 300×238×585mm
Net weight: 16kg
Gross weight: 18kg
