DT-8230

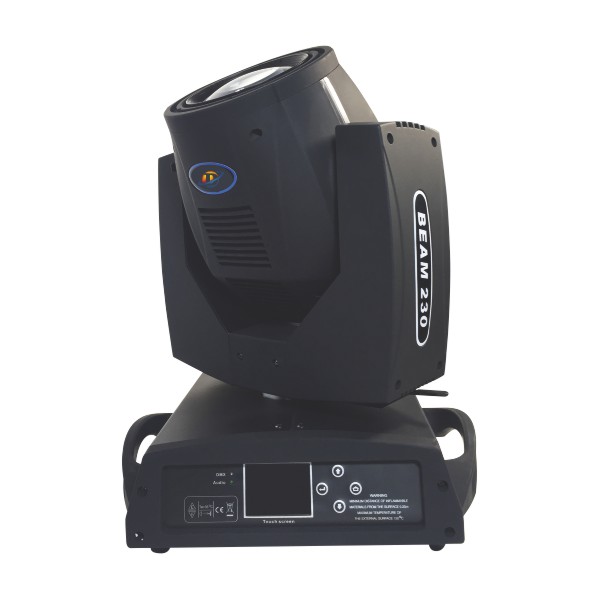

230W Moving Head Beam Light

Voltage: AC100-240V 50-60Hz
Light Source: Osram /Yodn
Light source power: 230W
Total power: 400W
Channel: 16 channels
Fuse: 7A
Color: 14 colors + white
Pattern: 17 patterns + white models
Strobe :0-10 times /sec, adjustable speed
X-axis: 540°
Y-axis: 270°
LCD: On /Off
Protection: IP20, overheating protection
Prism: 8/16facet prism for choice
Focus: Electronic focus
Color frost function
You can use DMX controller to control on/off of light
Carton size: 460x420x550mm
N.W: 17.5kg
G.W:19kg
