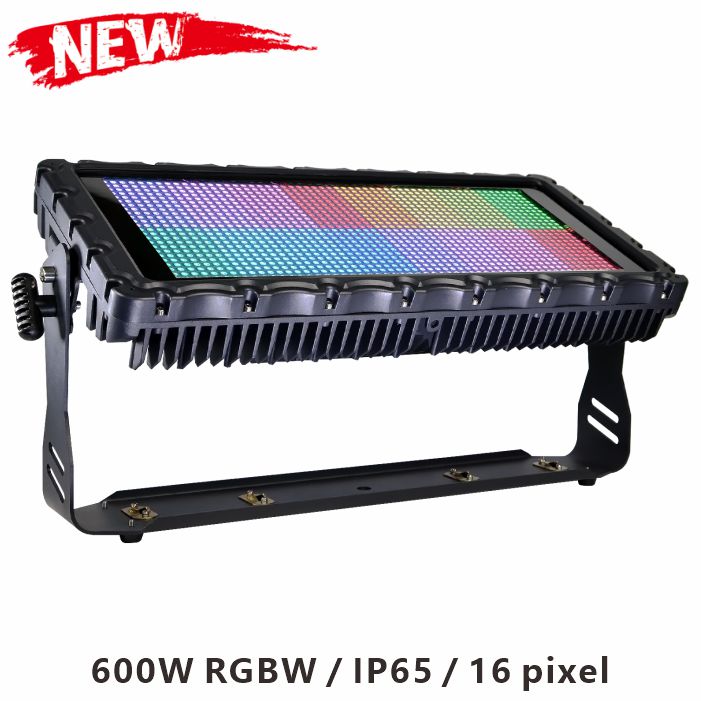

LED wash flashing light with segmented pixel control

Electrical
Input Voltage: 100~240V    50/60Hz
Max. Power: 630W (MAX)

Light Source
LED Qty.: 1344 x 0.8W RGBW 4in1
Pixel: 16
Drive Current: 50mA
Color Range: 16.7 million additive RGB colors with full saturation control (0-100% saturation dimming)

Control
On-board:Display for Static Color/Auto/Custorn control
Protocol:DMX512
Channel mode: 4 kinds control channels mode. STAG mode, HSV, RGB, RGBW mode can be chosen
Contril ID: 512 PCS DMX-512. 61 PCS ID

Optical System
Dimming mode: Dimmer 0 means fast Linear dimming.Dimmer 1~3 stands for soft Non-linear dimming
Dimmer: From 0~100 linear dimming
Curve:Linear / Exponential-1 / Exponential-2 / S-Curve
Flashing rate: 1~20Hz
Beam angle: 120°
Lens: Honeycomb type high transparent PMMA second optical lens
Refresh rate:3KHz

Physical
Dimensions: 646 x 134 x 350mm
Weight: 13.5Kg
Housing: Die-cast aluminium, powder-coated finish
Color: Black
Fixture Connection: Data in/out, Power in/out
