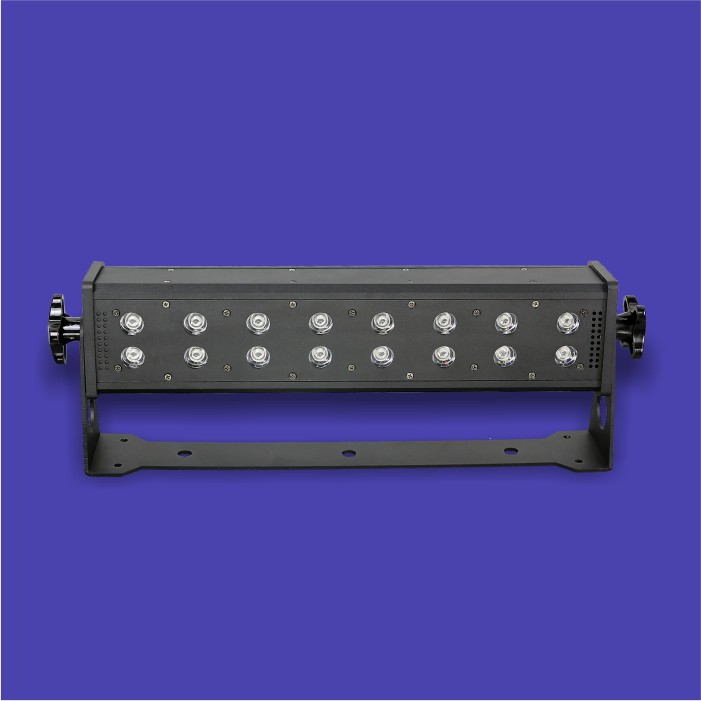

LD102-1603UV(LED UV BAR)

Type: LED UV BAP Model： LD102-1603UV(LED UV BAR)

Product Picture	Technical Parameters	Effect Picture	Light Body Size	Standard Accessories	Video Playback	Downloads
Electrical Input Voltage: AC90~240V, 50~60Hz  ± 10% Max. Power:50W (MAX) Fuse: AC250V/2A Light Source LED Type: 16pcs ×3W UV Drive Current: 700mA Wavelength: 395nm Life: 50,000 hours Control On-board:Display for Static Color/Custorn control Protocol:DMX512 Channel mode: 3 kinds control channels mode. 1CH mode,2CH mode,3CH mode can be chosen Optical System Dimming mode: Dimmer 0 means fast Linear dimming. Dimmer 1~8 stands for soft Non-linear dimming. Dimmer: From 0~100 linear dimming. Flashing rate: 1~20Hz Beam angle: 60° Lens: High efficiency curved reflector cup Physical Dimensions: 480 x 104 x 148mm Net Weight: 3.2Kg Surface Treatment: high temperature black paint Housing Color: Black (Can be customized) Connection: DMX signal IN/OUT, Power CON IN/OUT Certification and Safety Cooling System: Fan Temperature protection: 65°C Operating Environment: Indoor Working Temperature:-10°C～40°C
