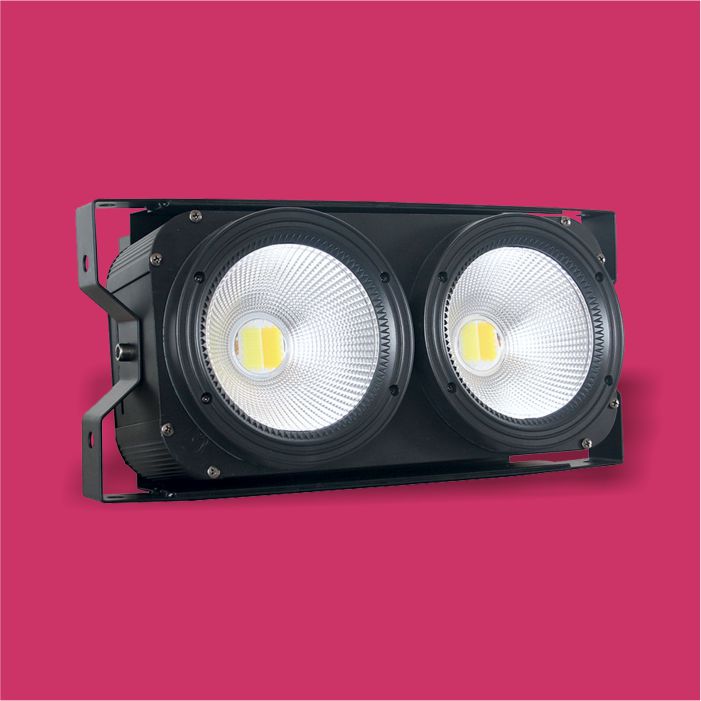

LD902-2100W(200W led blind light)

2018/6/19 21:18:24

Type: LED Blind Light
Model: LD902-2100W(200W led blind light)

Product Picture Technical Parameters Effect Picture Light Body Size Standard Accessories Video Playback Downloads

  1. Electrical
    Input Voltage: AC90~240V, 50~60Hz  ± 10%
    Max. Power: 210W (MAX)
    Fuse: AC250V/2A

    Light Source
    LED Type: 2pcs ×100W white LED
    Drive Current: 3000mA
    Colors: Warm White
    CCT: 2700~2900K
    Life: 50,000 hours

    Control
    Control Protocol: International standard DMX-512 signal
    Channel Protocol: 5 channel modes. 2CH,4CH, ARC.2, AR2.D,and AR2.S modes can be chosen
    Control Mode: DMX-512, auto, master-slave mode, static mode and LED

    Optical System
    Dimmer: From 0~100 linear dimming
    Strobe: 1~20Hz
    Beam angle: 60°
    Lens: COB high transparent PMMA second optical lens

    Physical
    Dimensions: 385 x 175 x 203mm
    Net Weight: 4.5Kg
    Surface Treatment: Die-casting aluminum, high temperature black paint
    Housing Color: Black (Can be customized)
    Connection: DMX signal IN/OUT, Power CON IN/OUT

    Certification and Safety
    Cooling System: Fan
    Temperature protection: 65°C
    Operating Environment: Indoor
    Working Temperature:-10°C~40°C

Prev: LD905-4100W(400W led blind light)Next: LD921-HL200W(Outdoor audience light)
