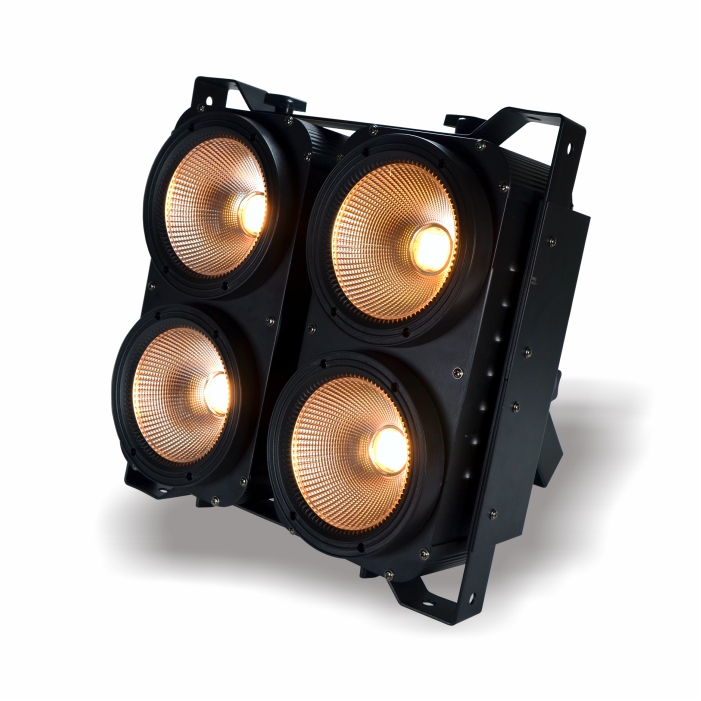

LD902-4100W(400W led blind light)

2018/9/3 10:09:17

Type: LED Blind Light
Model: LD902-4100W(400W led blind light)

Product Picture Technical Parameters Effect Picture Light Body Size Standard Accessories Video Playback Downloads

  1. Electrical
    Input Voltage: AC90~240V, 50~60Hz  ± 10%
    Max. Power: 410W (MAX)

    Light Source
    LED Type: 4pcs ×100W white LED
    Drive Current: 3000mA
    Colors: Warm White
    CCT: 2700~2900K
    Life: 50,000 hours

    Control
    Control Protocol: International standard DMX-512 signal
    Channel Protocol: 7 channel modes. 1CH,4CH,8CH, ARC.4,AR4.S,AR4.D and STAG modes can be chosen
    Control Mode: DMX-512, auto, master-slave mode, static mode and LED

    Optical System
    Dimming mode: Dimmer 0 means fast Linear dimming.Dimmer 1~8 stands for soft Non-linear dimming
    Dimmer: From 0~100 linear dimming
    Flashing rate: 1~20Hz
    Beam angle: 60°
    Lens: COB high transparent PMMA second optical lens

    Physical
    Dimensions: 370 x 360 x 210mm
    Net Weight: 10Kg
    Surface Treatment: Die-casting aluminum, high temperature black paint
    Housing Color: Black (Can be customized)
    Connection: DMX signal IN/OUT, Power CON IN/OUT

    Certification and Safety
    Cooling System: Fan
    Temperature protection: 65°C
    Operating Environment: Indoor
    Working Temperature:-10°C~40°C

Prev: LD902-2100W(200W led blind light)Next: LD921-HL200W(Outdoor audience light)
